Use only few screen out of multiple with RDP (Remote Desktop Protocol)

31-Jan-2021 . 3 min readshare on twitter imageshare on twitter image

blog image

Due to COVID-19 crisis, most of the developers are working from home. It's obvious to have multiple monitors. However, there are also many who uses RDP (Remote Desktop Protocol) to connect to their office computer and work. This poses certain discomfort, which I had felt too.

We rely on technologies like Skype, Teams or Zoom to communicate with our fellow colleagues. It is obvious, we would like to use the camera too. I was using all of my screens for RDP and I had to minimize my RDP window every time I was communicating with my colleagues. Furthermore, I was not able to share my screen and show things. This was very irritating.

The problem

The Windows Remote Desktop Connection allows only option to share all available monitors for the remote session. One cannot selectively choose. I connect through my laptop and has two monitors. I would only like to use my two monitors for the remote session and would like to use my laptop screen for Teams or Skype. With the current Remote Desktop Connection, it is not possible, at least straightforward.

The Solution

However, there is a work-around which let's use choose monitors/screens selectively.

Find active monitors

  1. Type C:\Users\rames>mstsc -l
  2. This shows a prompt with monitor order (for RDP session) and resolution. This is very important message.
  3. Based on this information we need to determine the monitors id.

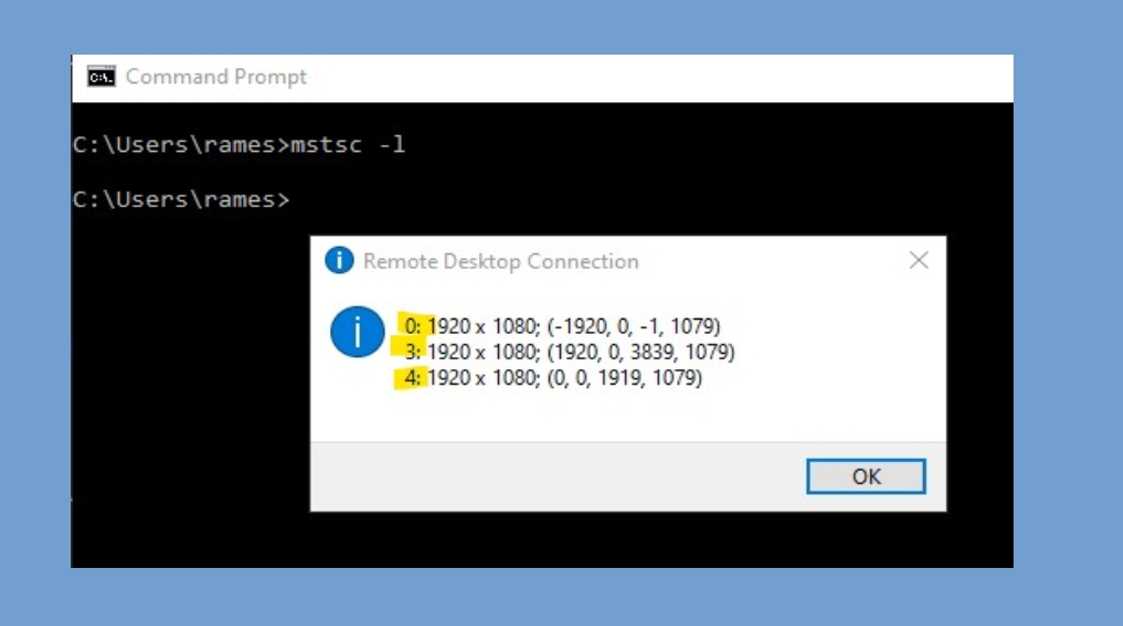

  4. In the image below, the first one, i.e. 0: 1920 x 1080; (-1920, 0, -1, 1079) is my laptop screen (which I don't want to share with remote session) and the last two are my monitors.
  5. On Remote Desktop Connection GUI, Use all my monitors for the remote session under Display must be chosen.

There is no straight forward way to determine the monitors identity. You might need to turn-off a monitor and run mstsc -l to determine it's actual id.

blog image

Edit *.rdp file

  1. Find the rdp file. By default, it's saved as Default.rdp in Documents or Desktop folder. Remember, it's a hidden file. Go to View tab and check Hidden items to see hidden files and folders.
  2. Open the rdp file in a text-editor.
  3. This file contains all the settings of the current RDP session, therefore, it's a good idea to take a back-up of it.

Example (excerpt) of the Default.rdp file

full address:s:xyz-j-001 audiomode:i:0 redirectprinters:i:1 redirectcomports:i:0
  1. Add this line in the rdp file selectedmonitors:s:3,4. 3,4 is the Id of the monitors that I want to include for the remote session.
  2. Save it and Connect to the remote computer. Now, only the mentioned monitors will be used for remote session.
