Truncating multi line text with both css and javascript

16-Nov-2020 . 5 min readshare on twitter imageshare on twitter image

post image

Truncating multiple line text using pure CSS can be done, however, it has some caveats. There a JavaScript solution might be ideal in some cases.

Truncating single line text followed by an ellipsis

The is a very common and widely used scenario and it has a standard CSS implementation.

.truncate { width: 20px; white-space: nowrap; overflow: hidden; text-overflow: ellipsis; }

The above code results in A quick brown fox jumps...

So far so good. What about if we want to limit our text to 2 lines? Well, we have a few possible solutions:

  • Pure CSS
  • JavaScript

CSS way: -webkit-line-clamp way

According to MDN, -webkit-line-clamp allows limiting of the content of a block container to the specified number of lines. However, it needs some friends to work as one to produce the result.

overflow: hidden; display: -webkit-box; or -webkit-inline-box -webkit-line-clamp: 2; -webkit-box-orient: vertical;

The above code will truncate or clip the text to two-line and show truncated text with an ellipsis. Despite being a Working Draft, the code works in all modern browsers except the Internet Explorer.

However, it might not be a perfect solution in certain situations. The biggest problem is -webkit-box or -webkit-inline-box. Despite having inline, it always behaves as a block.

It is very difficult to find information about -webkit-box! MDN provides some information under Formal definition. The important thing is it's a non-standard feature but surprisingly all browsers support it!

The problem

-webkit-line-clamp does truncate text for the given line. However, for it to work, it's dependent on three of the four properties, i.e., (display:-webkit-box or -webkit-inline-box), -webkit-line-clamp, and -webkit-box-orient. These 3 properties are its strength as well as Achilles' heel.

-webkit-box or -webkit-inline-box

-webkit-box or -webkit-inline-box behaves like block and gives a big problem when used with other inlined elements. For example, if the text to be truncated has to be inlined with other elements. It won't inline, even with -webkit-inline-box!

Let's examine a code shown below. I wanted to show all elements as inline, the last element inlined and aligned-right. I wanted to show like:

<div class="d-flex p-2 justify-content-between border4"> <div class="d-inline w-100 cursor-pointer"> <p class="d-inline text-dark-500 m-0 mr-2">02:10</p> <p class="m-0 pr-2 webkit-line-clamp"> Etiam pharetra semper commodo. Integer feugiat tellus nibh, sit amet pretium leo porta eu. Integer aliquet a nulla at condimentum. Nunc laoreet mi lectus, nec maximus sapien commodo sit amet. Nunc a mi non nulla dapibus tristique. Donec vel suscipit ante. Aenean euismod sem eu fermentum gravida. </p> <div class="d-inline" style="float: right"> <span class="badge badge-ny pl-0 font-weight-500"> <span>New</span> </span> <span class="badge badge-r font-weight-700 pl-0"> <span> R </span> </span> </div> </div> </div>

It does truncate text but broke my design, which I did not want.

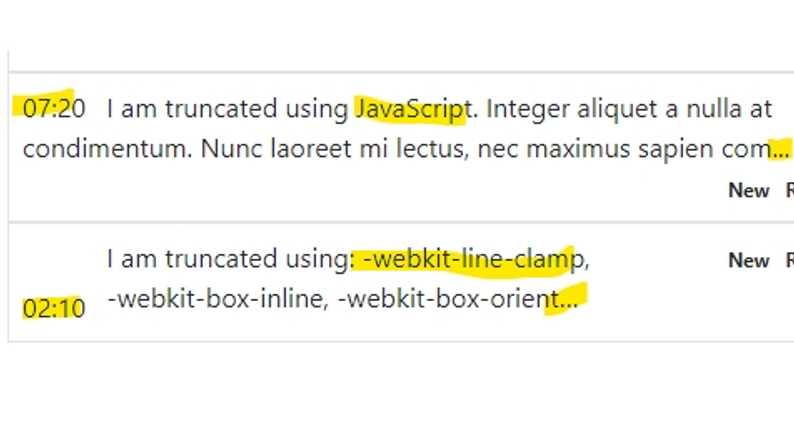

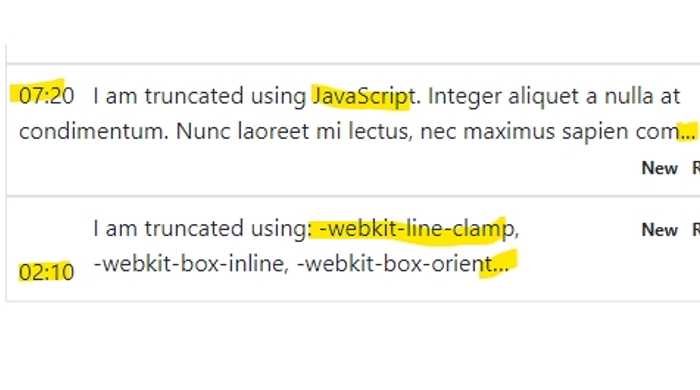

screenshot image

The first item (in the screenshot shown above) is what I wanted. The third line text (New, R) is also inline but aligned right. I would have loved to get the same result by using -webkit-line-clamp (as it's very simple and clean), however, it did not meet my purpose. I had to look elsewhere for the rescue.

JavaScript (once again, the saviour!)

JavaScript implementation is tricky with some pre-defined parameters. Such as:

  • Amount of letters or words to show and truncate rest:
  • Use the height of the div as the measurement index!

The first approach is shown here. In my opinion, it's very difficult to know in advance how many words or characters will fill-up the given area. Therefore, I have dropped this idea.

Using height of the div

Yes! A div with content has a height. Most of the time, we have a consistent height among items. In my case, I had to show many items using the same layout. That made my task a lot easier.

Complete code for this blog can be found here in CodeSandbox.

I found that the height of the div for which text has to be truncated was '24px', when shown single line. For the 2 lines text, it was 48px. Now, if the height of div is greater than 48px, that means, the text of this div has to be truncated( I wanted to show only 2 lines of text).

If we are following a uniform design, then, we are going to have a uniform height. Or else, the JavaScript code has to be adjusted.

How does it work?

The idea is very basic.

  1. Read the DOM
  2. Get the height of the div
  3. Check if it exceeds a given threshold
  4. If it exceeds, send the text to a loop
  5. Remove each character at a time from the end
  6. Update the DOM with the text and check if the div width + "..." (if we want to show ellipsis) is less than given threshold
  7. Repeat until the text is less than the threshold

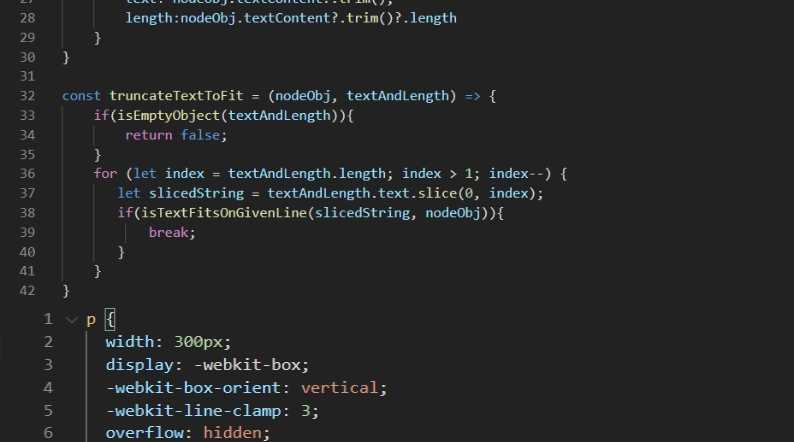

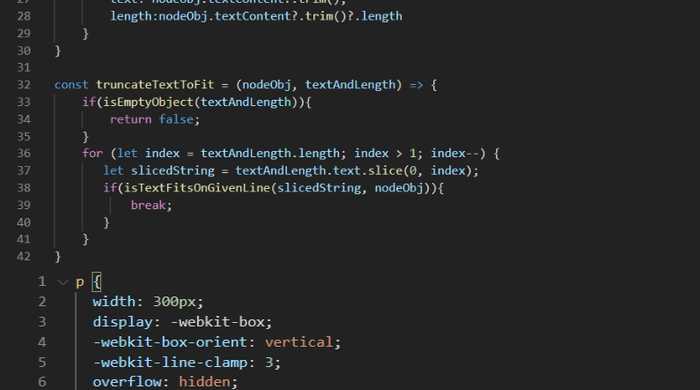

Excerpt of the code from CodeSandbox

function truncateTextToFit(nodeObj, textAndLength) { if (isEmptyObject(textAndLength)) { return false; } for (let index = textAndLength.length; index > 1; index--) { let slicedString = textAndLength.text.slice(0, index); if (isTextFitsOnGivenLine(slicedString, nodeObj)) { break; } } } function isTextFitsOnGivenLine(slicedString, nodeObj) { nodeObj.textContent = slicedString + elementToAdd; return nodeObj.offsetHeight <= BASE_OFFSET_HEIGHT; }

DOM manipulation is always expensive, but sometimes the DOM manipulation is a necessary evil.
